600A Power Distribution Block – 12V Bus Bar, Positive & Negative
$119.99
Taxes included.
Heavy-duty 600A power distribution block designed for high-current 12V electrical systems. Featuring tin-plated copper bus bars, 3/8" terminal studs, and protective covers, this positive and negative bus bar set is ideal for automotive, marine, truck, and solar applications.
Key Features
600A High-Current Capacity
Designed to handle up to 600A, providing reliable power distribution for high-current electrical systems.

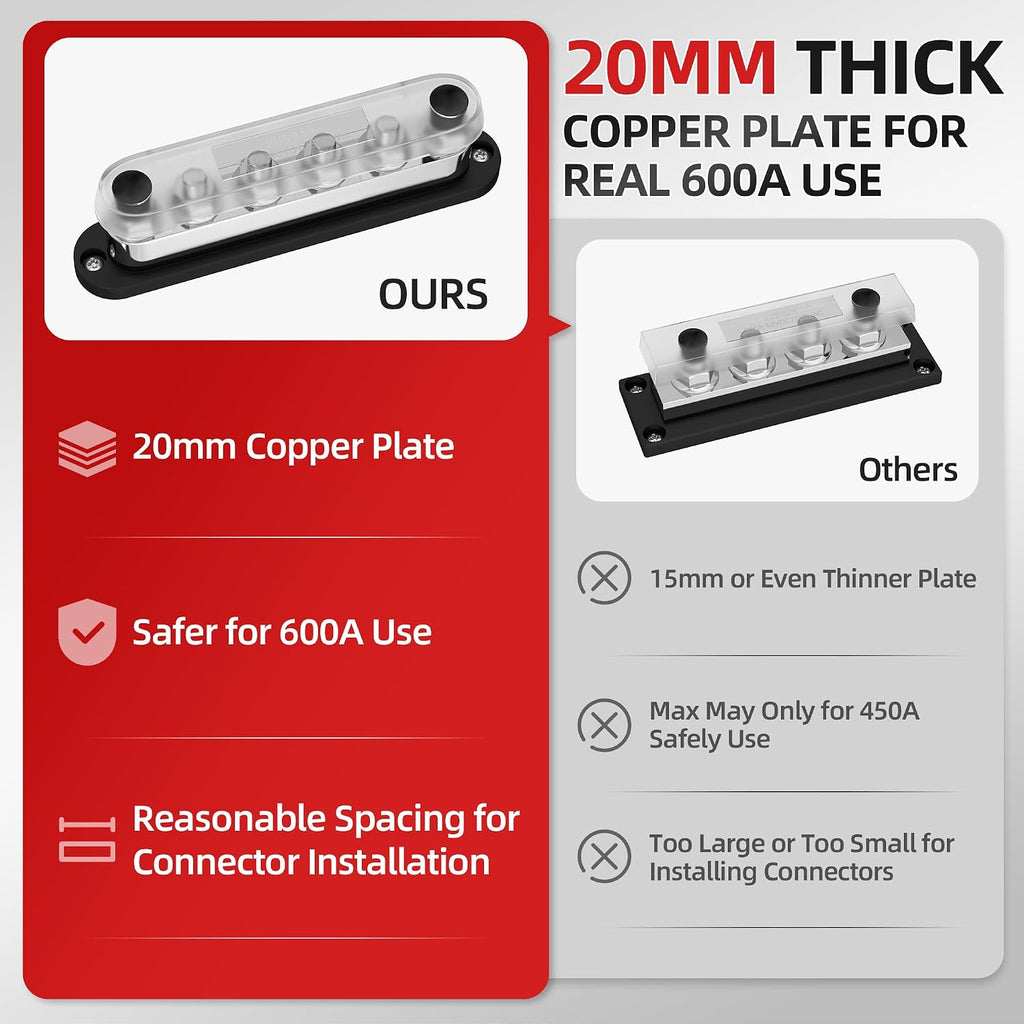

Heavy-Duty Copper Construction
The contact plate is made from 20mm thick tin-plated copper, providing a robust and highly conductive connection for demanding applications.

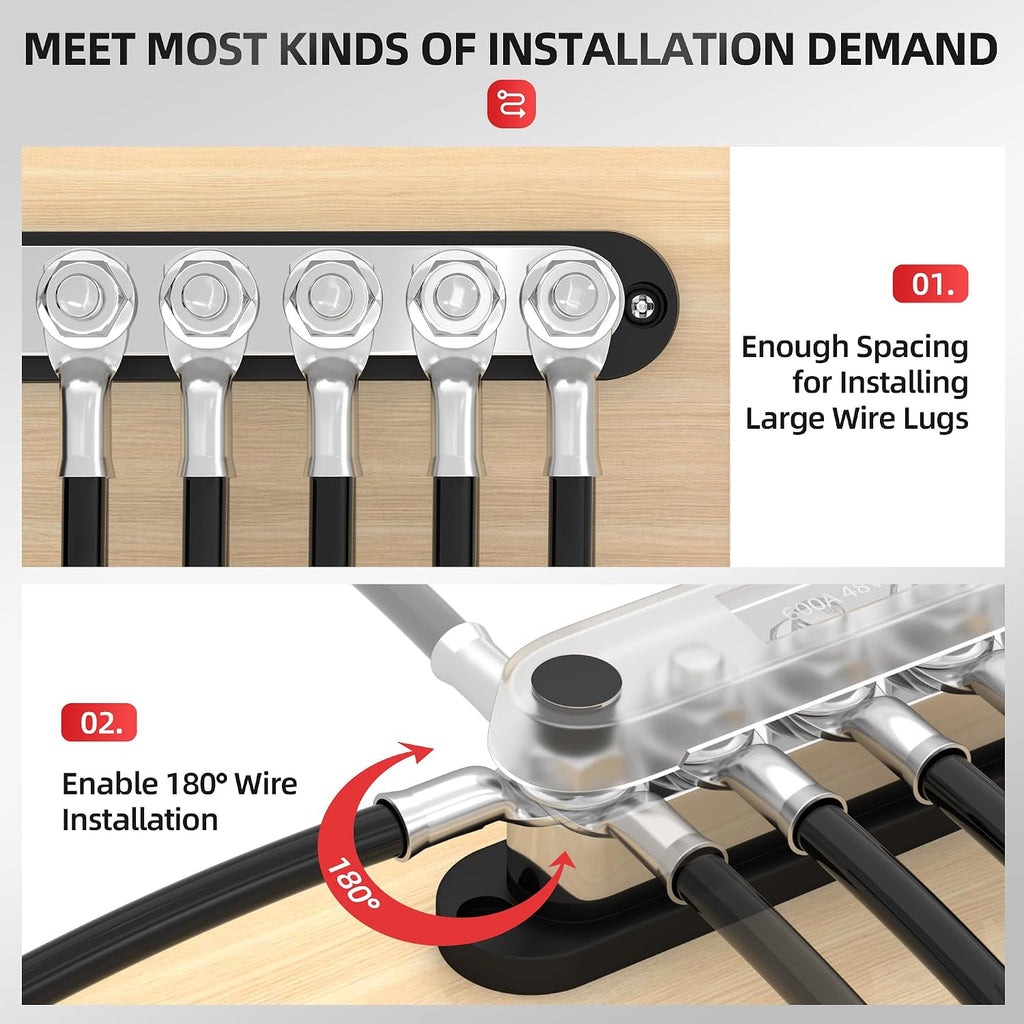

3/8" Terminal Studs
Six 3/8" terminal studs provide ample space for larger cable lugs and high-current wiring, making installation easier and more secure.
Positive & Negative Bus Bars
The set includes both a positive bus bar and a negative/ground bus bar, allowing you to organize and distribute power and ground connections from a central location.

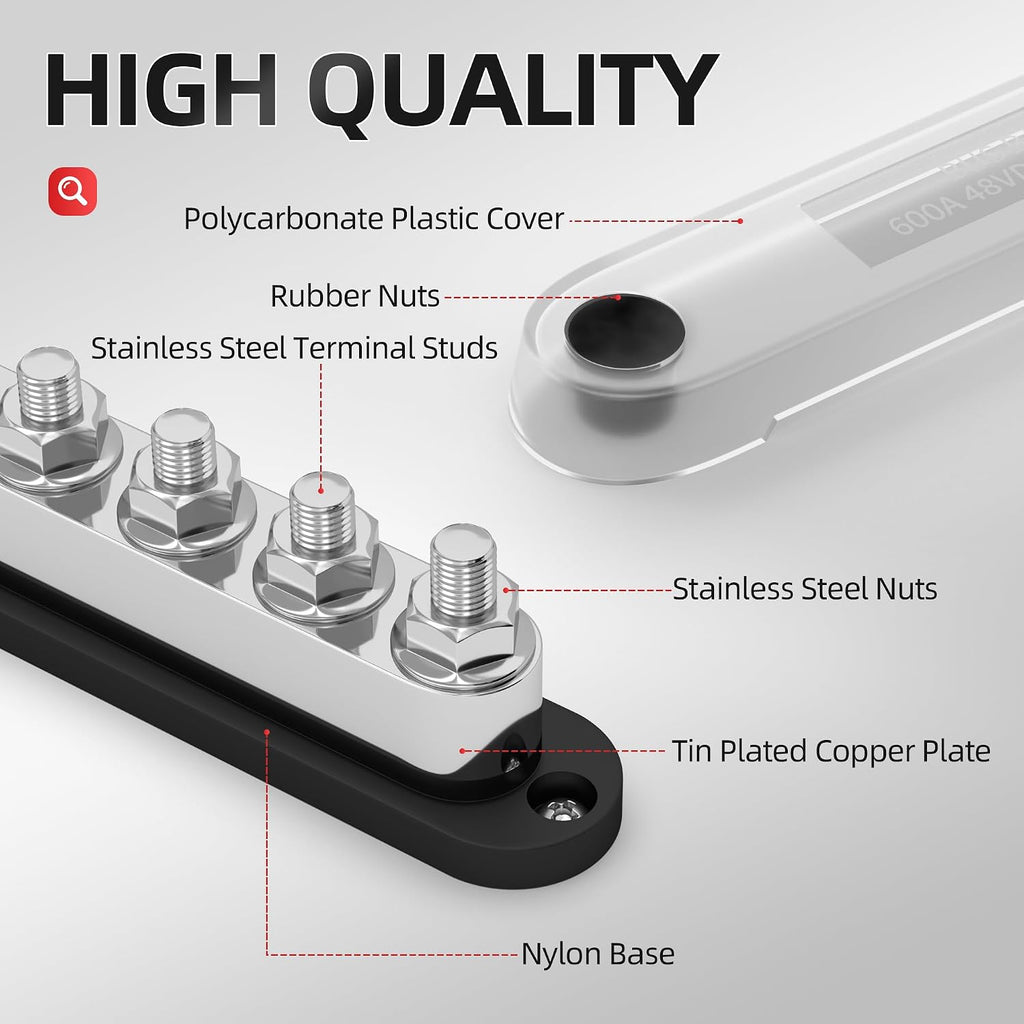

Durable Construction
The bus bars use tin-plated copper plates, stainless steel terminals, and a durable polycarbonate base, providing strength and resistance for demanding environments.
Protective Covers
Protective covers help reduce the risk of accidental contact and help keep the terminals organized in automotive and marine installations.

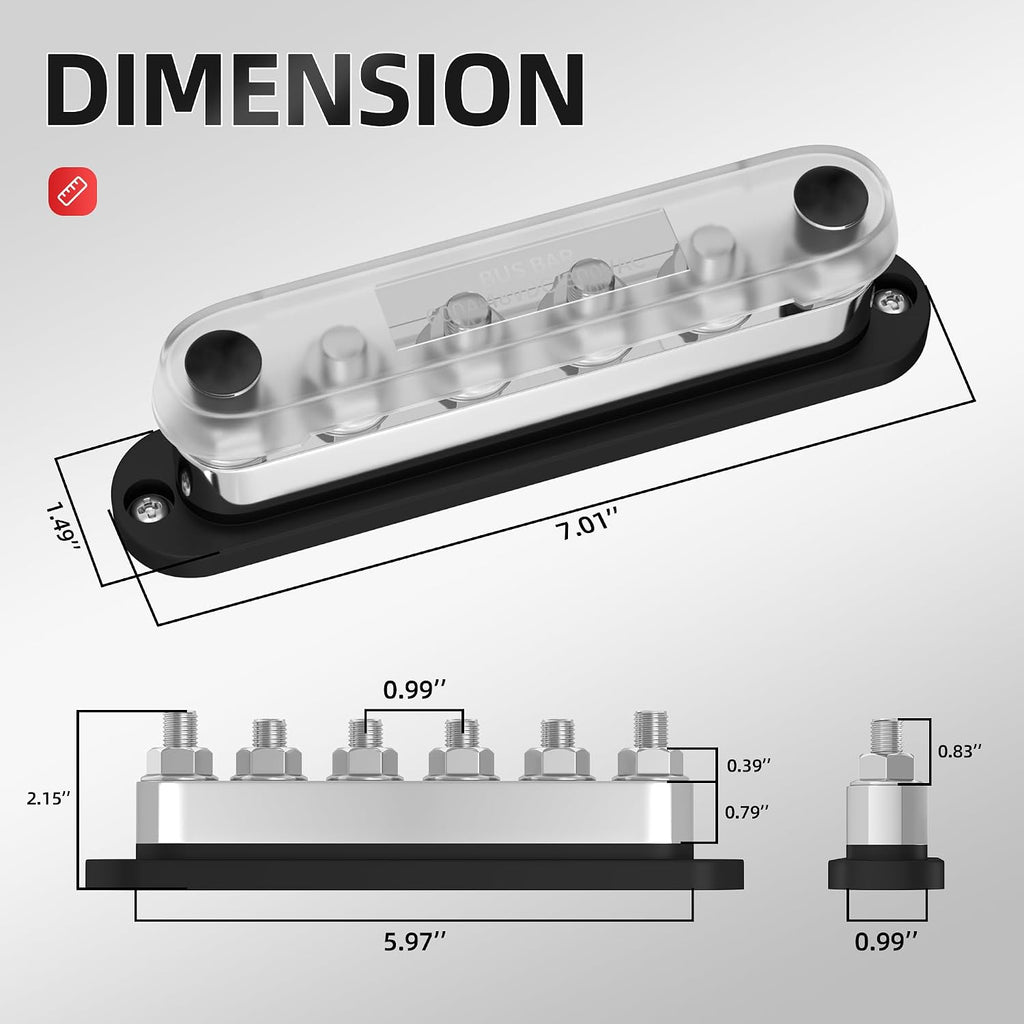

Specifications
| Specification | Details |
|---|---|
| Product Type | Power Distribution Block / Bus Bar |
| Current Rating | 600A |
| Voltage | Up to 48V DC / 300V AC |
| Terminal Stud Size | 3/8" |
| Number of Contacts | 6 |
| Number of Poles | 6 |
| Mounting Type | Panel Mount |
| Bus Bar Material | Tin-Plated Copper |
| Copper Plate Thickness | 20mm |
| Terminal Material | Stainless Steel |
| Base Material | Polycarbonate |
| Configuration | Positive + Negative |
| Quantity | 2 Bus Bars |
| Model | BB600-T6M10-C-RB |
Applications
Suitable for:
- Cars
- Trucks
- Boats
- RVs
- Marine electrical systems
- Solar power systems
- Battery systems
- High-current DC electrical installations

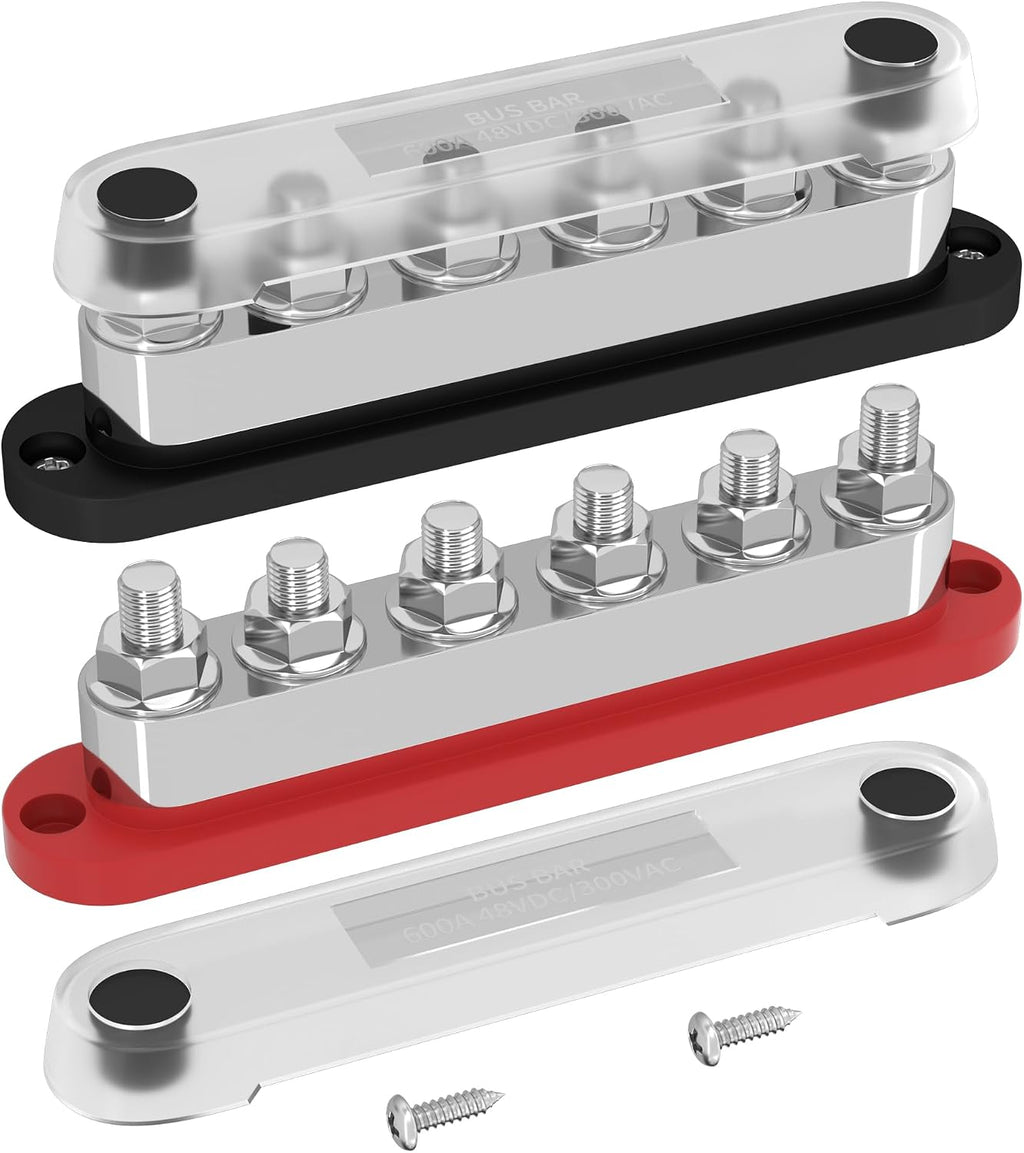

What's Included
- 1 × Positive Bus Bar
- 1 × Negative / Ground Bus Bar
- Protective Covers
- Mounting Hardware
FAQ
What is the maximum current rating?
The bus bar is rated for up to 600A.
What voltage can it be used with?
It is designed for systems up to 48V DC or 300V AC, according to the provided product specifications.
What size are the terminal studs?
The terminal studs use a 3/8-inch diameter design.
What material is the bus bar made from?
The contact plate is made from 20mm thick tin-plated copper. The terminals are stainless steel and the base is polycarbonate.
Does the product include positive and negative bus bars?
Yes. The set includes one positive bus bar and one negative/ground bus bar.
Can it be used for solar applications?
Yes. It is suitable for appropriate high-current solar, battery, automotive, RV, and marine electrical systems.
